| Brand Name: | BERGQUIST |
| Model Number: | Sil-Pad K-6 |
| MOQ: | 1roll |
| Price: | USD1~USD50 |
| Delivery Time: | 3~5working days normally |
| Payment Terms: | T/T |

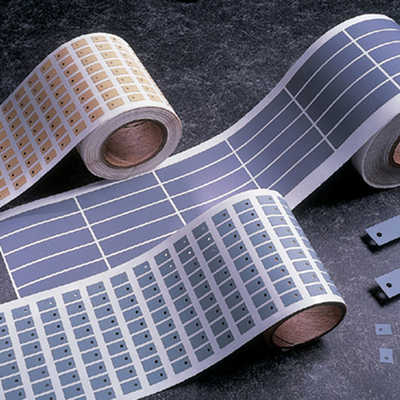

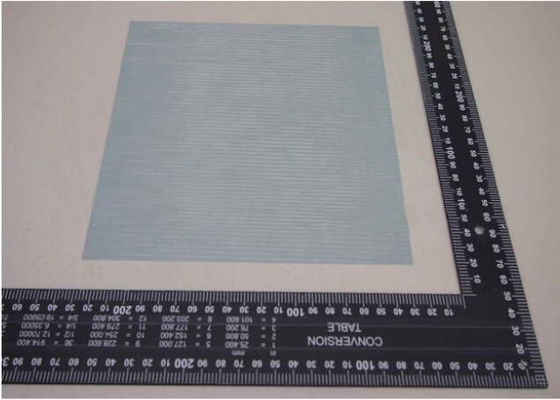

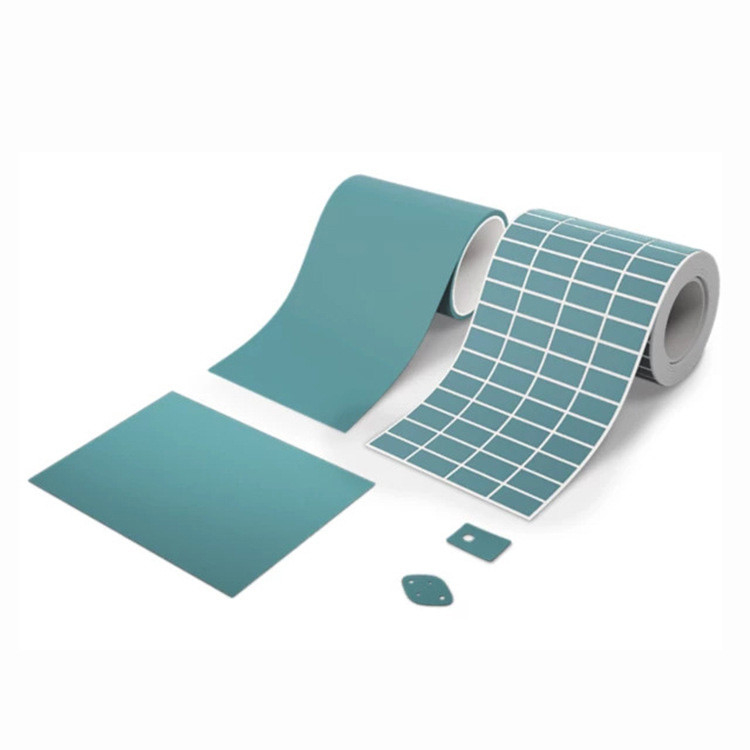

Bergquist Sil-Pad K-6 Kapton substrate SPK6 thermal conductive silicone tape
Description of products :
Product features/Applications :
| Test item | Test method | Unit | Imperial value | Meteic value |
Color | Visual | - | Bluegreen | Bluegreen |
Reinforcement Carrier | - | - | Polymide | Polymide |
Thickness (1) | ASTM D374 | inch / MM | 0.006 | 0.152 |
Hardness | ASTM D2240 | Shore A | 90 | 90 |
| ASTM D1458 | (lbs/inch)/(kN/m) | 30 | 5 |
| ASTM D412 | % | 40 | 40 |
| ASTM D412 | psi / MPa | 5000 | 34 |
Dielectric Breakdown Voltage | ASTM D149 | Vac | 6000 | 6000 |
Volume Resistivity | ASTM D257 | Ohm-meter | 1×1012 | 1×1012 |
Continuous Use Temp | - | °F / ℃ | -76 ~ 356 | -60 ~ 180 |
Flame retardant rate | UL 94 | - | V - 0 | V - 0 |
Dielectric constant | ASTM D150 | 1000 MHz | 4.0 | 4.0 |
Teat conductivity coefficient | ASTM D5470 | W/m·K | 1.1 | 1.1 |
THERMAL PERFORMANCEvs PRESSURE
| Pressure (psi) | 10 | 25 | 50 | 100 | 200 |
TO-220 Thermal Performance (°C/W) | 3.24 | 3.03 | 2.76 | 2.45 | 2.24 |
Thermal Impedance (°C-in2/W) | 0.82 | 0.62 | 0.46 | 0.41 | 0.36 |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
